Ebara EVMS
Ebara EVMS

Ebara EVMS

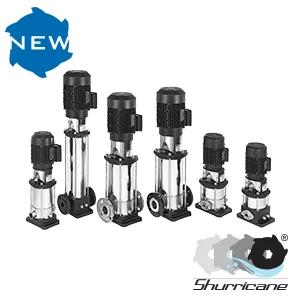

Ebara EVMS Feature

Vertical multistage centrifugal electric pumps available in various versions: cast iron (EVMSG),

AISI 304 stainless steel (EVMS), AISI 316 stainless steel (EVMSL).

• Innovative hydraulic solutions
– Commercial motors can be fitted to all of the pump models without
any modifications thanks to low pump axial thrust load.
– Low axial thrust load impeller can ensure long life of the motor bearing.
– High pump efficiency classified in MEI > 0.7 for all models.

• Energy saving
– High efficiency IE3 motor starting from 0.75 kW complied with
the EuP 2005/32/EC and ErP 2009/125/EC directives.
– The VFD (Variable frequency drive) and the commercial sensor can be directly

• Piping connection options
– The various pipe connections are available depending on the application
requirements Oval flange / Round flange /

• Loose flange / Victaulic® / Clamp
– The external dimensions can be adjusted to the replacement of
the existing pump in the wide majority

• Shaft seal solutions
– Silicon carbide inclusions with graphite can be used as
dry lubricant to reduce friction.
– It’s conforming to EN12756 (ex DIN 24960)

• Easy maintenance
– The cartridge mechanical seal enables the plug in replacement of
the shaft seal without disassembling the motor bracket
– The spacer coupling allows easy maintenance without having
to remove heavy motors over 5.5 kW.

• Smart plug solutions
– Air ventilation plug / Water filling & sensor plug / Commercial sensor fitting /
Measurements for suction and discharge


water treatment, boiler feeding, wash and clean, chilling, machine tooling, pressure boosting, food & beverage, pharmaceutical industries, marine applications

Building service
pressure boosting, sprinkler systems, firefighting systems, district heating, heat exchanger/fan heaters, air conditioning systems, heating systems

Water supply
water treatment, pressure boosting, irrigation, agriculture

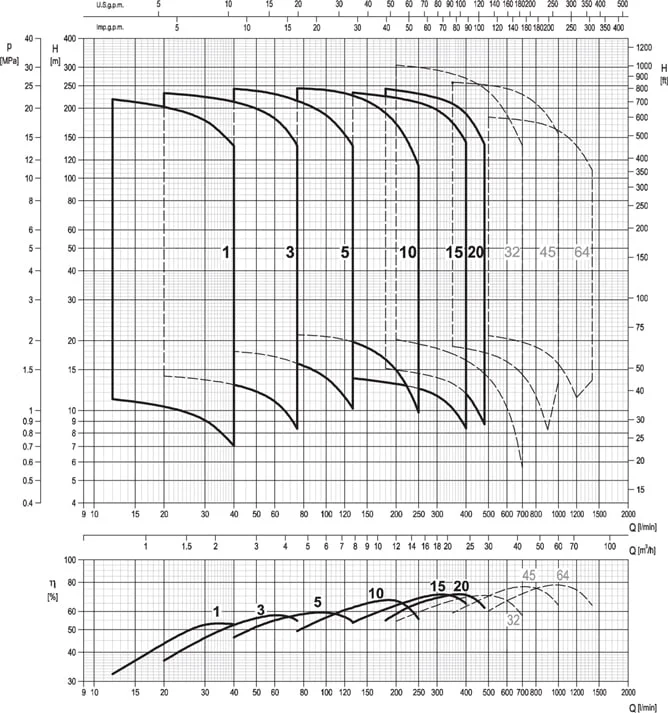

Selection Chart
